The Comprehensive Guide to Isolation Transformer: Definition, Advantages, Types, and Applications

Whether you are a beginner in electrical engineering, a student majoring in electrical engineering, or an industry practitioner, buyer, professional scholar, or expert who wants to learn more about isolation transformers, this article will provide you with valuable first-hand information about the transformer industry from the basic introduction, the use of isolation transformers to advanced applications.

Figure 1 Isolation transformers

Table of contents shinenergy

What is an isolation transformer?



Figure 1-1 iso transformer

Isolation Transformers Definition

Design of Isolation Transformer

Figure 1-2 Design of Isolation Transformers

An isolation transformer is usually an electrical device that uses electromagnetic induction to transfer power from one circuit to another. Its main function is to electrically isolate the input and output circuits to prevent electrical interference and accidental electric shock.

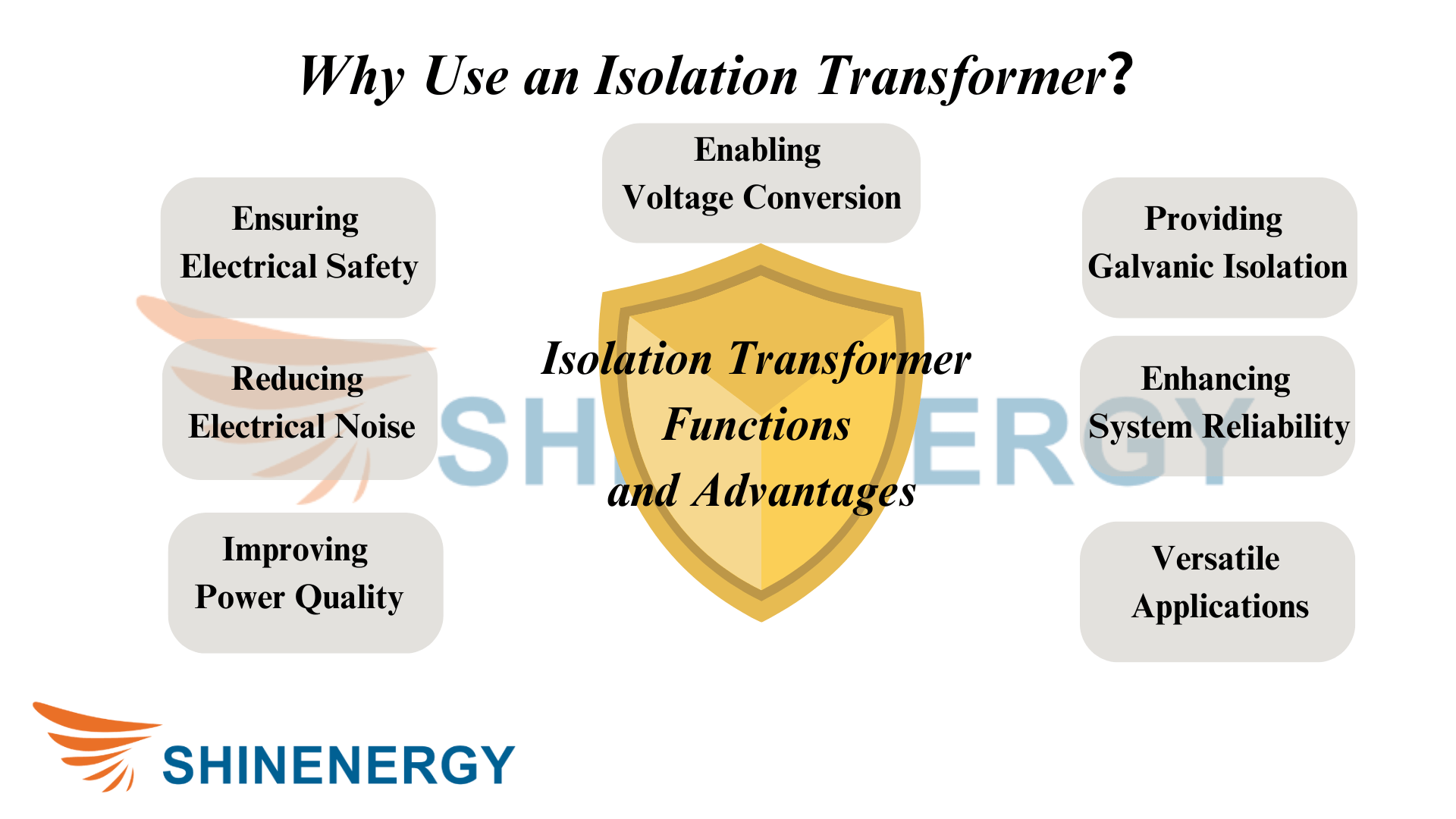

Why Use Isolation Transformers: Isolation Transformer Functions And Isolation Transformer Advantages

isolation transformer function

Figure 2 Isolation transformer function

Isolation Transformers Will Provide Strong Protection For Electrical Safety

Figure 2-1 electrical isolation

The isolation transformer electrically isolates the user’s usage scenario from the power supply, thereby preventing the user from being exposed to the risk of electric shock and endangering the user’s personal safety. Insulated transformers provide additional safety through electrical isolation, preventing the risk of electric shock and improving power quality.

Isolation Transformers Significantly Reduce Electrical Noise And Electromagnetic Interference

Figure 2-2 transformer insulation

They can effectively filter electrical noise and electromagnetic interference, ensuring that your equipment runs smoothly and without electromagnetic interference. Audio isolation transformers provide clear, interference-free audio signal transmission by eliminating ground loop noise.

Isolation Transformers Will Optimize Overall Power Quality

Figure 2-3 isolator transformer

It provides stable and pure power, ensuring better performance and longer use of equipment. An isolating transformer ensures safety and prevents electrical interference by completely isolating the primary side from the secondary side.

Isolation Transformers Provide Effective Isolation Protection

Figure 2-4 isolating transformers

They will prevent unstable current flow between circuits, which is beneficial to protect your precision equipment, thereby reducing the emergency losses and safety risks brought to you by ground loop phenomena.The Tripp Lite isolation transformer protects the device by electrically isolating it, ensuring a clean, interference-free power supply.

Isolation Transformers Supports Voltage Adjustment

Figure 2-5 insulation of transformer windings

The Isolation transformers can increase or decrease the voltage across your device to adapt to your various device requirements and the different usage scenarios you face.

Isolation transformers improve system reliability

Figure 2-6 transformador isolador

Isolation transformers enhance the reliability of your electrical system by isolating faults and reducing interference, thus protecting your production or application.

Diversified Applications Of Isolation Transformers

Figure 2-7 isolation transformer diagram

Isolation transformers have been widely used in various scenarios, from medical equipment to industrial automation, audio systems and other fields. The following will show you in detail.

How Do Isolation Transformers Work?

isolation transformer working principle

Figure 3 drive isolation transformer

The Working Principle Of The Isolation Transformers Determines Its Role

The working principle of the isolation transformers determines its role. The isolation transformers cleverly use the principle of electromagnetic induction to transfer power from one circuit to another, and the isolation transformers do not require a direct electrical connection.

The Unique Structure Of The Isolation Transformers Provides The Basis For Efficiency

Usually, how do transformers work the isolation transformers consist of two windings: the primary winding is connected to the input power supply, and the secondary winding is connected to the output load. They are wound on a common core usually made of iron to achieve magnetic coupling.

Physical Separation Of Primary And Secondary Windings To Achieve Circuit Isolation Of Isolation Transformers

Physically separating the primary and secondary windings from each other, will ensure that there is no direct electrical path between the input and output ends, thereby achieving electrical isolation. This electrical isolation phenomenon can effectively prevent electric shock and reduce the impact of electromagnetic interference. It provides certain insurance for the service life and life of the equipment, bringing sustainable economic effects.

The Voltage Transformation Of The Isolation Transformer Occurs By Balancing The Number Of Turns In The Primary And Secondary Windings

Voltage conversion in transformers is accomplished by manipulating the ratio of turns in the primary and secondary windings. This adjustment allows the transformer to either raise or lower the voltage in order to suit the specific needs of varying devices.

Magnetic Coupling Achieves Efficient Energy Transfer with an Isolation Transformer

When you look closely, you will find that whenever AC current passes through the primary winding, a magnetic field is generated and an induced current is generated in the secondary winding. If it is in this way, energy can be efficiently transferred without direct electrical contact.

Avoid The Hazards Of Ground Loops with an Isolation Transformer to Provide Effective Protection For Electrical Equipment

In actual use, we use the isolation transformer to keep the grounding of the primary and secondary sides independent, avoiding the ground loop phenomenon, and destroying our economic wealth. When you use this method, you can prevent unwanted current from entering the grounding system, thereby reducing noise and interference.

Ensuring The Efficiency Of The Isolation Transformer Is The Core

You will find that isolation transformer efficiency ensures the efficiency of the transformer by using high-quality core materials and precise winding processes. They have proper maintenance and use within the specified limits will also maximize the degree of efficient performance.

Transformer isolation pads minimize physical interference

When we observe the appearance of the isolation transformers, we will find that the transformer’s isolation pads are used to reduce the vibration and noise transmitted from the transformer to the mounting surface. These mats help minimize physical interference and maintain the performance of our isolation transformers.

Types Of Isolation Transformers

figure 4

Classification By Voltage with an Isolation Transformers

 Low Voltage Isolation Transformers

When you buy a low-voltage isolation transformer, you will find that they are often used in low-voltage applications, usually below 600 volts, such as isolation transformer 120v, isolation transformer 230v, isolation transformer 240v, and so on.

Medium Voltage Isolation Transformer

When you buy a medium voltage isolation transformer, you will find that they are often used in applications with voltages ranging from 600 volts to 35 kilovolts.

 High Voltage Isolation Transformer

How to make a high-voltage transformer? When you buy a high voltage isolation transformer, you will find that they are often used in high voltage applications, over 35 kilovolts.

Classification By The Application

with an Isolation Transformers

 Power Isolation Transformer

When you buy a power isolation transformer, it is used in general power applications, providing you with basic voltage conversion and isolation functions

Medical Isolation Transformers

Medical isolation transformers are transformers designed specifically for medical environments. They can provide high-precision electrical isolation, which protects patients’ lives and sensitive medical equipment.

Audio Isolation Transformer And Video Isolation Transformers

The main function of the audio isolation transformer and video isolation transformer is to reduce noise and interference, ensure the clarity and quality of the signal, achieve high-quality audio and high-quality video quality, and provide high-quality music listening and good video viewing. It is widely cited in the music industry and the film industry.

Control Isolation Transformers

The control isolation transformer is designed for use in control circuits, and its role is also very important, such as providing a stable power supply and electrical isolation to ensure the reliability and safety of power control systems.

Pulse Isolation Transformers

The pulse isolation transformer is used in pulse circuits and systems. Its role is to be able to handle rapidly changing currents and voltages, thereby ensuring accurate signal transmission.

 Instrument Isolation Transformers

Its role is used in measuring and monitoring equipment. Its role is to provide electrical isolation and signal stability, thereby ensuring the accuracy of measurement.

 Autoisolation Transformer

The Autoisolation transformer combines the characteristics of the autotransformer. Its role is to provide voltage conversion and electrical isolation, making it suitable for various power applications.

Classification By The Function

with an Isolation Transformer

Power Isolation Transformer

The Power isolation transformer is used in the general power system. Its function is to provide voltage conversion and electrical isolation, so as to ensure the stability and safety of the power supply.

Step-up/step-down Isolation Transformer

The Step-up/step-down isolation transformer is dedicated to voltage conversion. Its function is to increase or decrease the voltage to meet the needs of different equipment while providing electrical isolation.



Specific Applications Of Isolation Transformer

Isolation Transformer for Medical Equipment

isolation transformer medical

Figure 5 The isolation transformers medical grade and isolation transformers medical

In the 21st century, with the rapid development of medical technology, isolation transformers are widely used in many medical devices. They are usually called medical-grade isolation transformers. Medical-grade isolation transformers play a vital role in ensuring patient safety. They provide high-quality electrical isolation to prevent electric shock damage and protect sensitive medical equipment from electrical interference. Main applications include MRI machines, X-ray equipment, and patient monitoring systems.



<b>Isolation Transformer Application in Industrial Control Systems

Isolation transformer applications in industry

figure 6 Application in Industries

In modern industrial production environments, isolation transformers are used to protect industrial control systems from the destructive effects of electrical noise and surges. They cause huge financial losses to companies. Isolation transformers isolate control circuits from the main power supply to ensure that automation equipment and motor drives can operate reliably. Isolated power supplies provide pure, interference-free power to equipment through electrical isolation, ensuring safety and stability.

 Isolation Transformers Are Used In Audio And Video Systems

Isolation transformers are used in audio and video systems

figure 7

Isolation transformers in audio and video systems help eliminate ground loop noise, to prevent hum and interference in sound and video signals. They provide clear and high-quality signal transmission for recording studios, broadcasting equipment, and home theater systems. To achieve high-quality audio and excellent video quality, provide high-quality music listening and good video viewing. It is being widely cited in the music industry and the film industry.

Isolation Transformers for Data Centers and IT Infrastructure

Isolation transformers for data centers and IT infrastructure

Figure 8

Data centers and IT infrastructure rely on isolation transformers to provide a stable power supply to servers, storage systems, and network equipment. These transformers help prevent electrical noise and surges from causing data corruption, equipment failure, and equipment downtime.

 Isolation transformers for use in laboratories and test equipment

Isolation transformers for use in laboratories and test equipment

Figure 9

Isolation transformers are used in laboratories to protect sensitive test and measurement equipment from electrical noise and spikes. They ensure accurate and reliable results from equipment such as oscilloscopes, signal generators, and spectrum analyzers. They protect scientists’ experimental results. ISO transformers provide a stable power supply through electrical isolation, preventing noise and interference from affecting equipment operation

Isolation Transformers Application in Renewable Energy Systems

Isolation Transformer Application in Renewable Energy Systems

Figure 10 Isolation Transformer Application in Renewable Energy Systems

In renewable energy systems, such as solar and wind power generation installations, isolation transformers are used to connect renewable energy to the grid or battery energy storage systems. They provide isolation to prevent electrical faults and ensure safe operation.

<b>Isolation Transformer Application in the Telecommunication Industry

Isolation Transformer Application in Telecommunication Industry

Figure 11

Telecommunication systems use isolation transformers to protect communications equipment from electrical surges and noise. These transformers ensure clear and reliable transmission of voice and data signals in wired and wireless communications networks.

<b>Isolation transformer for marine and ship applications

Isolation transformers for marine and offshore applications

Figure 12 The transformer marine

Isolation transformers in marine and offshore applications are designed to withstand harsh environmental conditions while providing electrical isolation for safety and equipment protection. They are used in ships, oil platforms, and other marine structures to prevent electrical faults and ensure reliable power distribution.

FAQ:

What Is The Difference Between A Transformers And An Isolation Transformers?

Isolation transformers are capable of electrical isolation and have higher safety; additionally, they bring better noise and interference suppression, provide effective ground loop protection, and have a wider range of application scenarios.

What Is The Three Phases Transformer Connection?

Delta-Delta (Δ-Δ)

Delta-Wye (Δ-Y)

Wye-Delta (Y-Δ)

Wye-Wye (Y-Y)



What Is Galvanic Isolation?

Galvanic Isolation is a method of isolating different circuits to prevent direct currents from flowing between them, ensuring that signals or electrical energy can be transmitted safely. An isolation transformer has the same input and output voltages

What Is The Isolation Transformer Symbol? and What Is The Isolation Transformer Electric Symbol?

The figure shows the primary and secondary windings of the isolation transformer, and the magnetic core is represented by dashed or solid lines. The electrical isolation characteristics of the transformer are emphasized in the figure.

What Are the Isolation Transformer And Variac?

Isolation transformers can transmit power while isolating the power supply from the device.

Autotransformers allow you to adjust the output voltage as you wish. Although it does not provide electrical isolation, it is useful in laboratory testing, industrial equipment, and dimming controls to precisely adjust the voltage as needed.

What is Electric Shock?

Isolation transformers can reduce the risk of electric shock because they isolate the electrical connection between the power supply and the device, transferring energy through electromagnetic induction, so even if you touch the device, you will not directly touch the power supply.

What Is The Ground Loop?

A ground loop occurs when there are multiple ground connections between two points in an electrical system. This creates a loop that allows unwanted current to flow, which can create noise and interference, and can even damage equipment. Ground loops are particularly common in audio, video, and data communications systems, causing hum, buzz, and other interference. The ground isolation transformer reduces ground noise interference and improves the stability of the electrical performance of the equipment by isolating the ground loop.

What is the function of torus isolation transformer?

Electrical isolation:

Toroidal isolation transformers prevent electrical faults in the circuit (such as short circuits or overloads) from propagating to the secondary side by completely separating the primary and secondary sides through electrical isolation. This helps to protect the equipment and the user.

Voltage conversion:

It converts the voltage of a power supply to a voltage suitable for a particular device or application and is often used to match voltages between countries or devices with different voltages. A TV isolation transformer (TV Isolation Transformer) is a transformer used to isolate the electrical connection between the TV antenna system and the TV set.

Reduction of electromagnetic interference (EMI):

Due to its toroidal structure with lower leakage magnetism, toroidal transformer produces less EMI than other types of transformers, and can better suppress noise and high-frequency interference, which is especially suitable for audio equipment or precision electronic equipment.

Reduce leakage current:

Through the electrical isolation of the isolation transformer, the leakage current through the ground can be effectively reduced, thus improving the safety and stability of the equipment.

Improve power quality:

isolation transformers can also filter out electrical noise in the power supply, providing a more stable and cleaner power supply, especially in equipment requiring high power quality, such as medical equipment and precision instruments.

¿Cómo funciona un transformador de aislamiento monofásico diagrama para garantizar la seguridad eléctrica?

Un transformador de aislamiento monofásico diagrama funciona separando eléctricamente el circuito primario del circuito secundario, lo que impide la transferencia directa de corriente entre ellos. Esto garantiza que cualquier fallo o sobrecarga en el lado primario no afecte al lado secundario, proporcionando así una mayor seguridad eléctrica. Además, ayuda a reducir las interferencias electromagnéticas y evita la formación de bucles de tierra que podrían causar ruido en los sistemas eléctricos.

¿Qué ventajas ofrece un transformador en la protección de equipos eléctricos?

  • Aislamiento eléctrico: Separa los circuitos primario y secundario, lo que protege los equipos sensibles de sobrecargas o fallos en la red de alimentación.
  • Reducción de interferencias: Ayuda a filtrar el ruido eléctrico, proporcionando una señal más limpia y estable para los dispositivos conectados.
  • Adaptación de voltaje: Permite convertir el voltaje de entrada a un nivel adecuado para los equipos, evitando daños por voltaje inadecuado.
  • Protección contra sobrecargas: Al limitar la corriente que puede pasar al equipo, protege contra picos de corriente y cortocircuitos.
